Description

cncKad offers a full range of CAD/CAM capabilities for CNC punch, laser, plasma, flame, water, shear, coil, busbar, and combination machines, including support for sorting and stacking devices attached to your machine. Advanced technology combines design, automatic and manual processing, automatic and manual nesting, efficient NC generation, graphic simulation, and machine communication (DNC).

https://metalnetwork.in/contact
View Our Products or Contact us

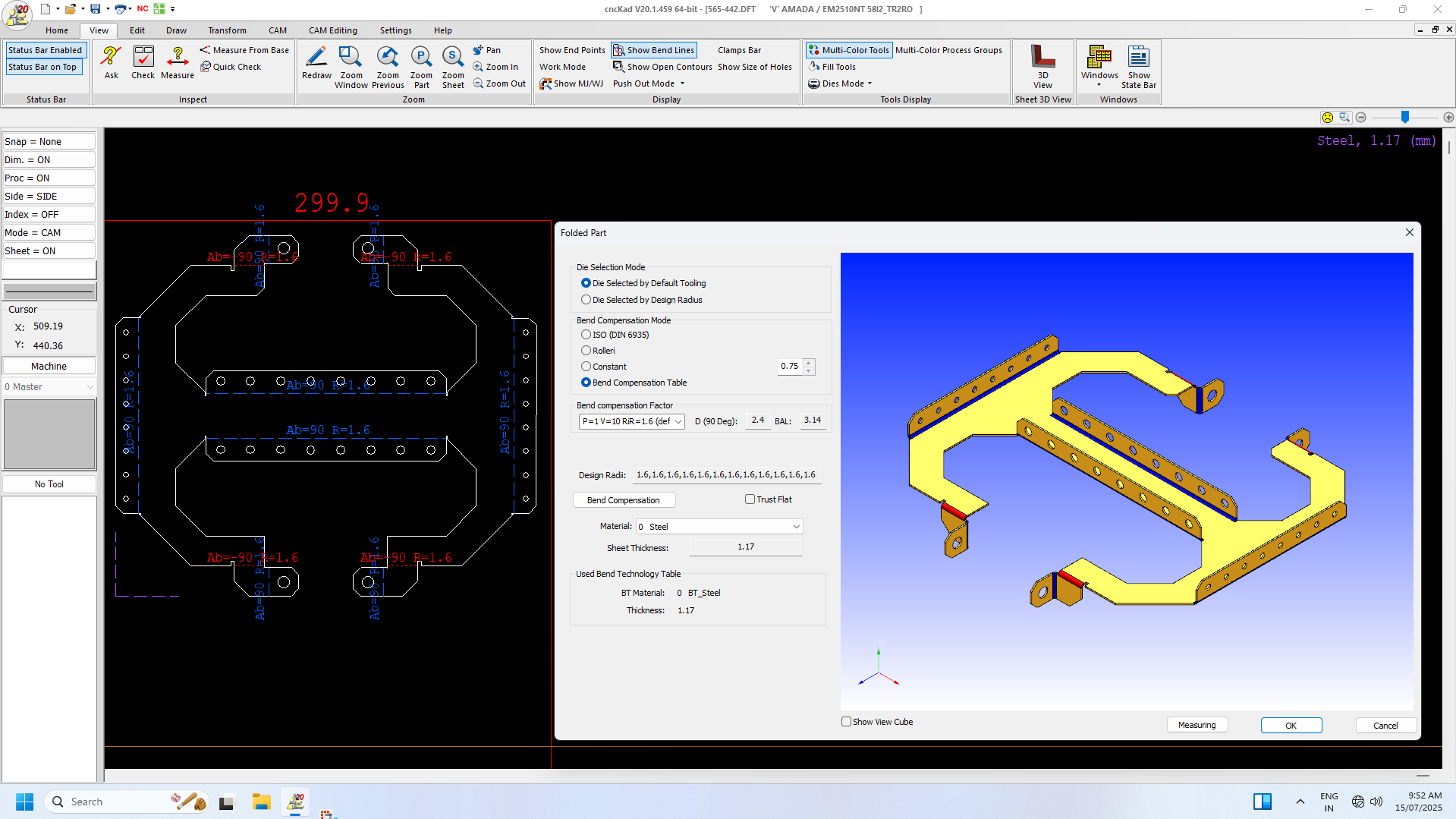

cncKad is the only system that integrates CAD/CAM capabilities in the same module. Geometry, dimensions, and technology (punching/cutting) are completely associative; when you modify the geometry, cncKad automatically updates the dimensions and punching or cutting definitions. More than 1300 different machine models from over 160 manufacturers have been driven by cncKad to date, and more are added as needed. This powerful solution also ports parts from one technology or machine type to another, such as from punch to laser. cncKad, with a modular and responsive ribbon interface, features these advanced technologies:

Cutting

cncKad cutting creates programs for your cutting machine from CAD files and designs.

• Cutting
• Automatic Cutting
• Beam Compensation Solutions
• Cutting Technology Tables/Import External Tables
• Common Cuts
• Advanced Technologies
• Tool Path Optimization

cncKad cutting turns CAM files into NC code for your cutting machine. In a few clicks you are able to generate efficient programs while optimizing material utilization and machine runtime. The cutting solution can be influenced by factors such as head, gas, lens, corner treatment, cutting optimization, and MicroJoints. You can modify the proposed parameters and edit the cutting tables as required. You can easily control common line cutting, cutting part-by-part, cutting order, and any other specific way of processing the sheet. cncKad always optimizes the chosen methods to minimize the production time, taking machine capabilities and limitations into account. The post-processor then converts these actions into efficient NC programs.

Cutting features include:

• Automatic cutting
• Material-based cutting parameters
• Collision avoidance between cutting head and sheet
• Defining beam width and auto compensation
• Corner treatment
• Z axis control
• Full support for common cuts
• Cutting speeds determined by geometry and material
• WireJoint, MicroJoint, and MicroWeld support
• Vaporization options
• Marking and/or engraving before cutting
• Bridge cutting and chains
• Support for multi-head plasma, flame, and water jet machines

For instructional videos on this topic products, go to Metalix YouTube Channel.
